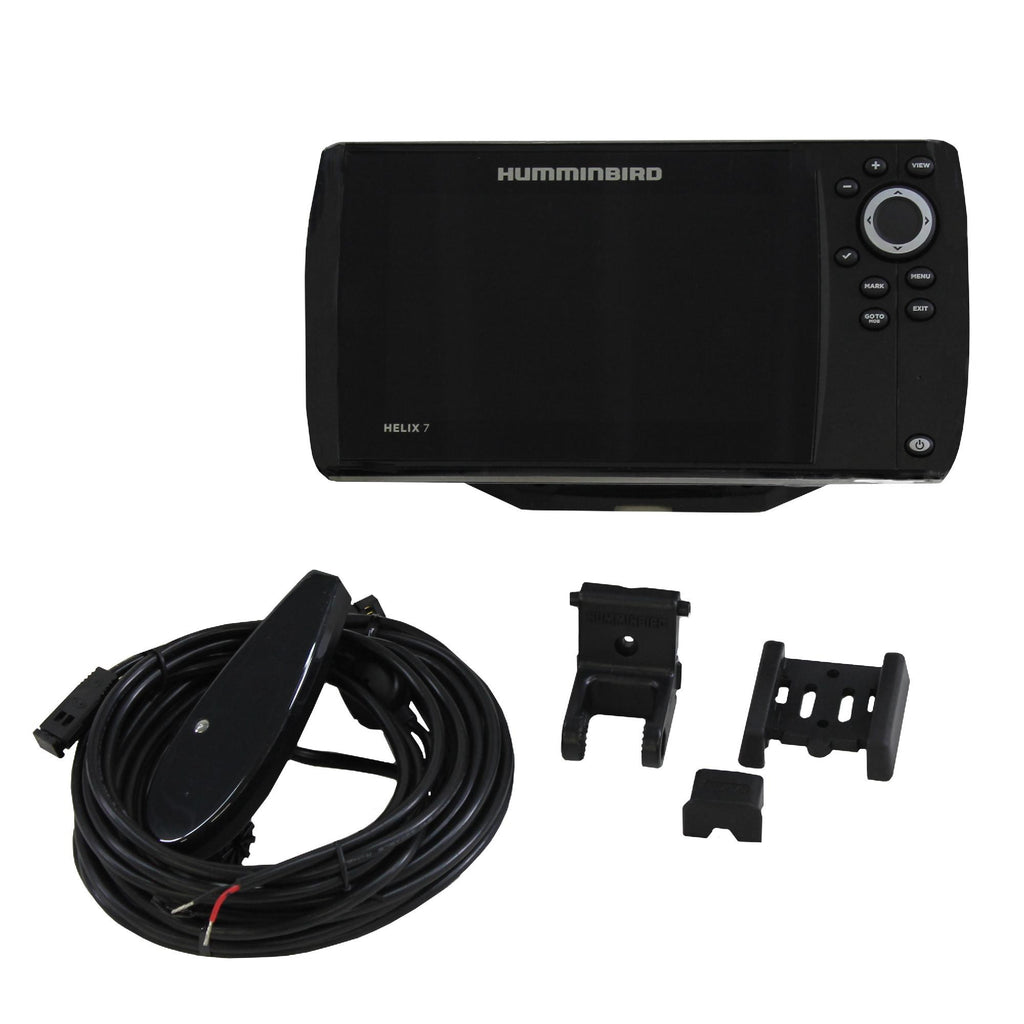

Helix 7 Chirp GPS - Chirp DI GPS G2
Manufacture ID: 410300-1
Discover fish and structure, then track their every move with the HELIX 7 CHIRP DI GPS G2. See fish and vertical lure presentations by viewing CHIRP Down Imaging and SwitchFire Sonar side-by-side on the wide, 16-bit display. The reliable, internal GPS offers 2500 waypoints and 50 routes, so you can return to your most productive spots time and time again. A single, micro SD card slot delivers Humminbird LakeMaster, AutoChart and AutoChart Pro, as well as Navionics +. Also has the user interface and operating system.
CHIRP Frequencies (Out of Box Transducer), Maximum Depth: 600'
455 kHz: 420-520 kHz
800 kHz: 790-850 kHz
CHIRP Frequencies (Optional Purchase Transducer), Maximum Depth: 2500'
Low: 28-75 kHz
Med: 75-155 kHz
High: 130-250 kHz
83/200: 75-155/130-250
50/200: 28-75/130-250
Features:
- Exclusive Multi-Range Chirp -- View low, mid and high Chirp ranges, either individually or all at once
- Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.
- SwitchFire Sonar -- Take command of how your sonar returns appear with Clear and Max Modes.
- Dualbeam Plus Sonar: Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area
- Internal GPS: GPS antenna built into the head unit
- Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through the My Humminbird section of the site
- High Definition Display: Provides bright, crystal-clear images for easy viewing in harsh sunlight
- The Humminbird UniMap is a built-in map covering the contiguous US coastline, inland lakes and rivers at 30 meters per pixel resolution
- Autochart Live: Make a map where there is no map. The patent pending AutoChart Live allows you to create digital, detailed maps live and on the water. You can also use it to enhance your existing charts
- SmartStrike takes you straight to the action by showing you where the fish are biting at any given moment
- Micro SD Card Reader: Use for advanced cartography or to save screenshots, sonar recordings and waypoints or to update your units software
Specifications:
- Display Size - Diagonal: 7"
- Display Pixel Matrix: 800H x 480V
- Display Type: Color TFT
- Display Colors Grayscale: 16-bit
- Sonar Standard: CHIRP/Down Imaging/DualBeam PLUS
- Standard Sonar Coverage: 16e, 28e, 45e & 75e @ -10db
- Standard Sonar Frequency: 200/455/455/800 kHz
- Sonar Optional: 50/83 kHz
- Target Separation: 2.5"
- Power Output RMS: 500 Watts*
- Power Output Peak to Peak: 4000 Watts*
- Depth Capability: 600'
- Temperature: Built In Transducer
- Speed: GPS Speed Included
- Backlight: LED
- Unit Size - Gimbal Mount: 10.54"W x 5.44"H x 1.13"D
- Mount A Type: Gimbal Mount
- Unit Size - Indash Mount: 10.54"W x 5.80"H x 3.68"D
- Mount B Unit Size2: Optional In-Dash
- Mounting Options: Gimbal or Optional In-Dash
- Transducer Standard: XNT 9 DI T
- Transducer Mounting: Transom
- Power Input: 10.8-20 VDC
- Power Draw: 850 mA
- GPS Receiver: Included
- GPS Tracking: Included
- GPS Chartplotting: Included
- Waypoints, Routes, Tracks/Points: 2,500, 50, 50/20,000
- Humminbird Mapping: Optional
- Navionics+: Optional
- Navionics Platinum+: Optional
- Platinum Capable: Optional
- C-Map 4D: Not Supported
- 360 Imaging: Not Supported
- i-Pilot Link: Not Supported
- HD Radar: Not Supported
- NMEA 2000: Not Supported
- 5 Port Expansion Module: Not Supported
- Precision GPS: Included
- PC Connect: Optional
- SwitchFire Sonar: Included
- Screen Snap Shot: Not Supported
- Sonar Recording: Included
- Humminbird PC: Included
- Upgradable Internal Software: Included
- Split Screen Zoom: Included
- Split Screen Bottom Lock: Included
- 3D Chart View: Included
- Large Digits View: Included
- Wide/Narrow Cone Split Screen: Included
- Custom View Selections: Included
- Custom Digital Readout: Included
- View Preset Keys: Not Supported
- Temperature Graph: Not Supported
- Temperature Alarm: Included
- Freeze Frame: Included
- Instant Image Update: Included
- Mark Structure on Sonar: Included
- Selective Fish ID+: Included
- Real Time Sonar: Included
- Triplog: Included
- X-Press Menu System: Included
- Card Reader Available: Yes
- # Card Slots: 1
