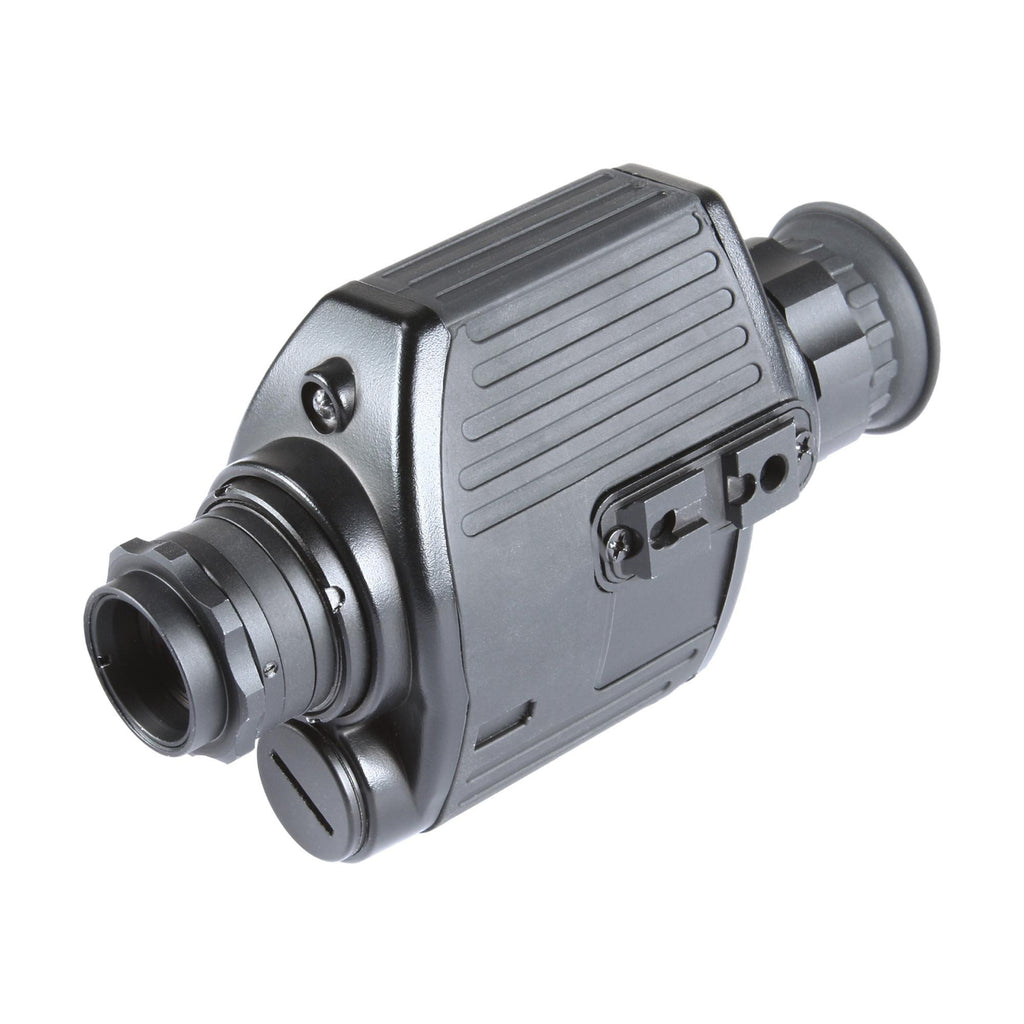

Vega-Mini Gen 1+ Night Vision Monocular
Manufacture ID: NKGVEGA0M111I11
The compact and lightweight Vega-Mini 1x 1st Gen Night Vision Monocular from Armasight features multicoated optics, a 1st generation intensifier tube with a resolution of 40 lp/mm, and a built in infrared illuminator with a flood lens. While the 35e angular field of view allows you to spot and track your targets easily, the built-in infrared illuminator improves target brightness and visibility in absolute darkness. The monocular also features an 8" minimum focus distance, a diopter adjustment, an 8mm exit pupil, a 20mm eye relief, and can be used as a handheld device or mounted to an optional head mount. The control menu features a single pushbutton, a battery status indicator, and an infrared status indicator.
The weather-resistant and shock-resistant housing is made of lightweight and durable glass-fiber composite and will allow operation in extreme temperatures. It has an ergonomic grooved armoring that provides a non-slip grip. Also included with the monocular are a CR123A battery, a soft carrying case, a lens tissue, an objective lens cap, and an eye cap.
Accessories Include:
- CR123A Battery
- Lens Tissue
- Objective Lens Cap
- Eye Cap
- Soft Carry Case
Features:
Optical Performance:
- Multicoated optics
- Magnification: 1x
- 21mm objective lens diameter
- Maximum Angle of View: 35e
Intensifier Tube and Infrared Illuminator:
- 1st generation
- 40 lp/mm resolution
- Built-in infrared illuminator with a flood lens
Use and Handling:
- Battery indicator
- Infrared on indicator
Construction Details:
- Glass-fiber reinforced composite housing is lightweight and durable
- Contoured body is comfortable to hold
- Grooved armoring provides a non-slip grip
- Mounting point for optional head mount
- Water and fog resistant
- Shock resistant
Specifications:
- Intensifier Tube: 1st generation
- Resolution: 40 lp/mm
- Magnification: 1x
- Angle/Field of View: Angular: 35e and Linear: 184' at 100 Yards
- Objective Lens Diameter: 20.6mm
- Lens System: 35mm, f/1.7
- Minimum Focus Distance: 7.8"
- Dioptric Correction: e4
- Exit Pupil Diameter: 8mm
- Eye Relief: 0.8"
- Infrared Illuminator: Yes
- Tripod: No
- Battery / Runtime 1 CR123A Battery / With IR: 12 Hours Maximum and Without IR: 58 Hours Maximum
- Weatherproofing: Weather Resistant
- Shock Resistance: Shock Resistant
- Operating Temperature: -22 to 113eF
- Storage Temperature: -49 to 122eF
- Material Housing: Glass Fiber Reinforced Composite
- Dimensions: 5.8" x 3.2" x 1.8"
- Weight: 8.6 oz
