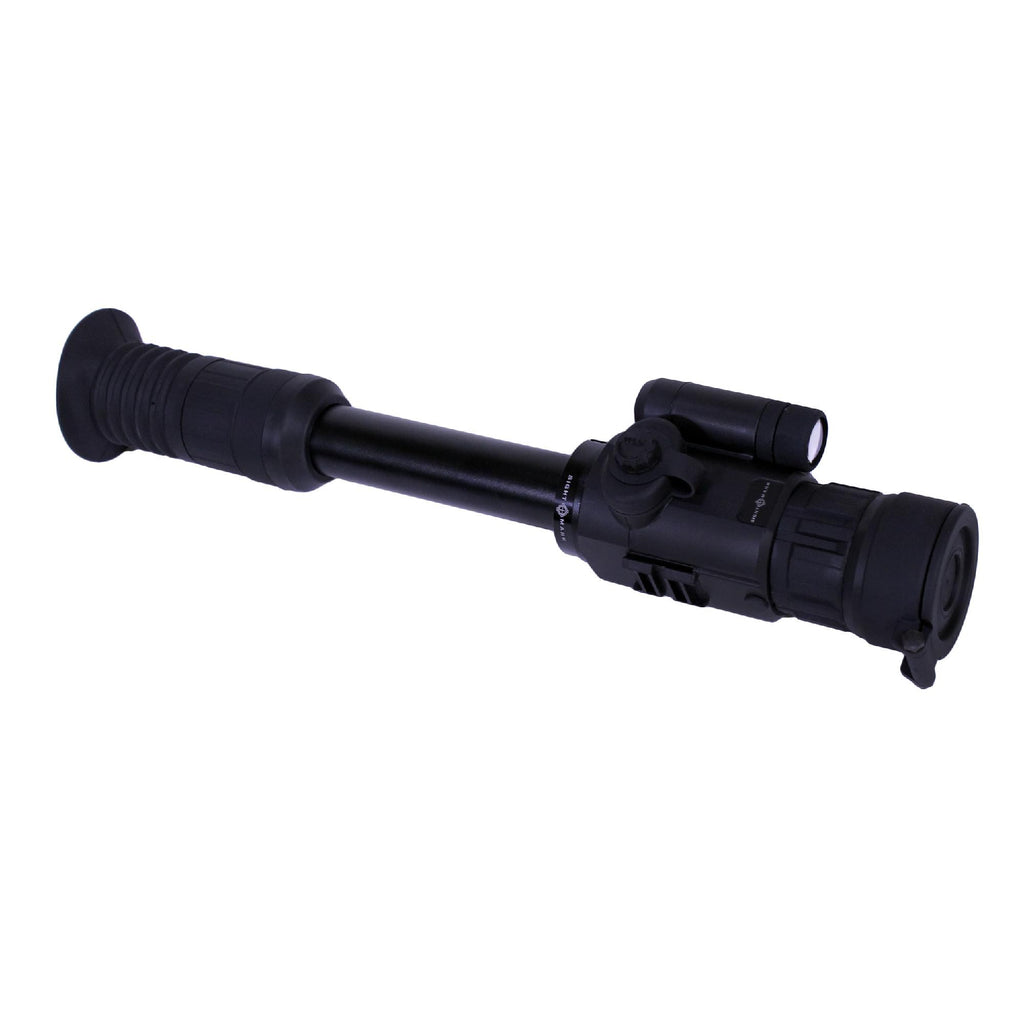

Photon Digital Night Vision Riflescope - XT 4.6x42S
Manufacture ID: SM18008
Engineered for precision placement at medium range, the extremely versatile Sightmark Photon XT4.6x42 delivers a higher magnification, 33% longer battery life and 30% lighter weight than other digital night vision riflescopes on the market. Featuring six red/green/white digital reticle options for a vast range of applications, the scope includes: two crossbow reticles designed for 320, 350, 370 and 400 fps crossbows; two Duplex reticles for hog and varmint hunting; a Mil-Dot reticle for rangefinding and holdovers; and a German-style reticle. Its 4.6x magnification, large 42mm objective lens and higher than average 640x480 resolution offers crisp detailing at up to 120 yards. Shooters have the ability to capture everything seen, day or night, through the video output feature, and attach additional accessories to the scope’s integrated weaver rail. The device also utilizes a digital windage and elevation adjustment system for guaranteed precision and an overall streamlined design.
Specifications:
- Type of Sensor: CMOS sensor
- Camera Resolution: 656 x 492 Pixels
- Display Type: LCD
- Display Resolution: 640 x 480 pixels
- Video Availability: In: No and Out: Yes
- Pin Type of Video Input/Output: RCA
- Magnification 4.6x
- Objective Lens Diameter: 42mm
- Lens Focus: 50mm
- Relative aperture, D/f': 1:1.2
- Field of View: 4.3°
- Field of View at 100 Yards: 22 1/2'
- Close Focus Distance: 10m
- Eye Relief: 2.36"
- Diopter Adjustment: +/-3
- Resolution: 38 Lines Per mm
- Emitter: LED
- IR Wavelength: 810nm
- Equivalent IR Power: 60 / 90 / 120 mW
- Beam Divergence: = FOV Degree
- Range of Detection: 130 Yards (Object 1.7m High, Illumination Level 0.05 Lux(1/4moon)
- Power Supply: 2.0 - 3.3 VDC
- Battery Type: AA x2
- Battery Life (without IR): 5 Hours
- Battery Life (with IR): 4 Hours
- External Power Supply: No
- Windage & Elevation Adjustments: Digital
- Windage Adjustment: 25mm at 100m Per Click
- Elevation Adjustment: 25mm at 100m Per Click
- Windage Range of Adjustment: 60 Clicks
- Elevation Range of Adjustment: 60 Clicks
- Number of Preloaded Reticles: 6
- Lens Material: Glass
- Body Material: Glass Nylon Composite/Metal
- Type of Mount for Attachment of Additional Accessories: Weaver
- Operating Temperature: - 15 °F to 50 °F
- waterproof Rating: IPX4
- Nitrogen Purged: No
- Shockproof: Yes
- Maximum Recoil: 1000 G's
- Tube Diameter: 30mm
- Dimensions: 15.70" x 2.90" x 3.1"
- Weight: 23.60 oz (with Batteries)
