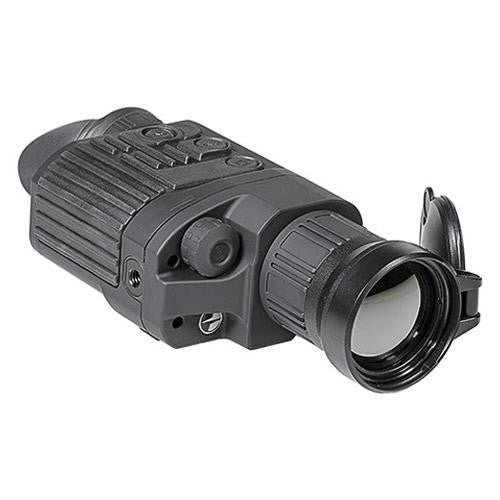

Quantum LD19A 1-2x16mm Thermal Image Monocular, Black
Manufacture ID: PL77326
Engineered to accomplish "white hot" and "black hot" heat signature observation at more than 500 yards away, the Pulsar Quantum LD19A Thermal Imaging Monocular is ready to meet the demands of experienced and law enforcement professionals. Its thermal core resolution of 384x288 captures maximum thermal energy efficiently for a more detailed image. The 9 hertz frame rate, impressive LCD 640x480 display resolution offers a crisp, consistent image. Long-distance viewing is made possible by the 2x digital zoom, which increases the 1x magnification to 2x. Equipped with durable, glass-nylon composite housing and a weight just under one pound, the LD19A is extremely lightweight and weather resistant, able to withstand the harsh environments of the outdoors. It includes a standard weaver rail and tripod mount, allowing for attachment of external power supplies, as well as video output to record each session. Its 3 new operating modes (City, Forest and Identification) offer enhanced contrast, significantly improving rendering of hot object details. Users can choose from the automatic, manual or semi-automatic calibration modes, which calibrates the lens in just 1 to 2 seconds.
Features:
- 384 x 288 resolution, 9hz refresh rate
- 1x magnification with 2x digital zoom
- Up to 515 yd detection range
- Manual, automatic & semi-automatic calibration modes
- Hot white / hot black viewing modes
- LCD display
- Brightness and contrast adjustments
- Video output
- Quick start-up
- External power supply adaptable
- Compact and lightweight
Included in Box:
- Carrying case
- Output video cable
- Hand strap
- Car adapter
- Extra battery container
- Lens cleaning cloth
Specifications:
- Frame rate: Hz 9
- Microbolometer resolution,pixels: 384 x 288
- Sensor response: LWIR
- Spectral sensitivity, em: 7.7 ... 13.2
- Pixel pitch, em: 25
- Display type : LCD
- Display resolution, pixels: 640 x 480
- Video output: PAL / NTSC
- Pin type of video input / output: 3.5mm jack
- Operation modes: City, forest, identification
- Magnification: x 1 - 2
- Digital zoom: x 2
- Lens diameter, mm: 16
- Lens focus, mm: 19
- Relative aperture,D/f': 1:1.2
- Field of view, e, horizontal * vertical: 26.8 x 20.8
- Minimum focusing distance, m: 3
- Eye relief, mm : 20
- Exit pupil, mm: 5
- Diopter adjustment, dptr.: e 5
- Focusing type of distance: Internal
- Range of detection, m / yd : 470 / 515
- Power supply V: 4 e 6
- Battery type: 4 x AA
- Battery life, hour: 5.5
- External power supply DC: 8.4 e 15
- Lens material: Germanium
- Body material: Glass-nylon composite
- Operating temperature, eC / eF: - 15 ... 50 / 5 ... 122
- Degree of protection: IPX4
- Calibration Manual, automatic, semi-automatic
- Dimensions, mm: 180 x 86 x 58
- Weight (w/o batteries), oz: 11.3
