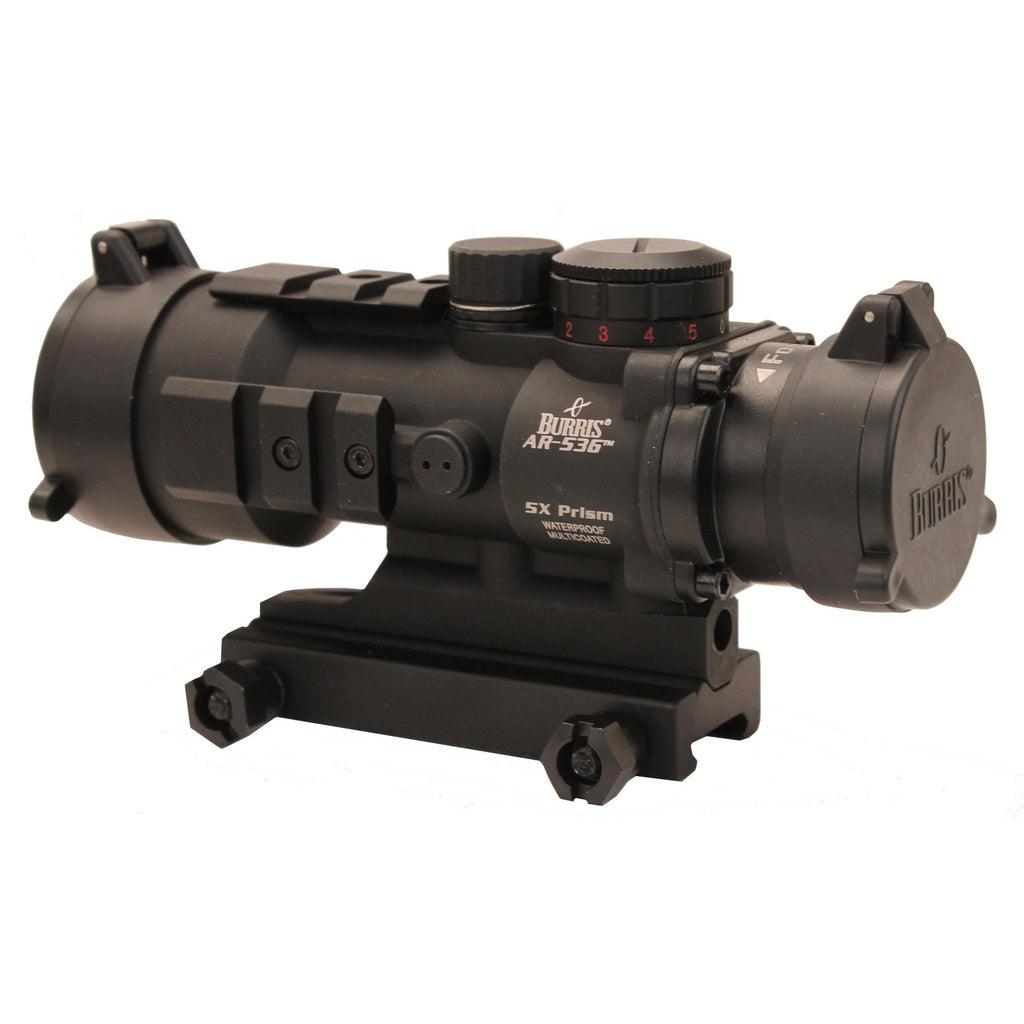

AR-Tact 536 5X-36mm Ballistic
Manufacture ID: 300210
The AR-536 is a compact, fast-acquisition optic designed for lawmen, military personnel, and competitive shooters who want additional range.
The rotary, 10-position power selector allows quick changes from red to green powered reticle, or clear, crisp black reticle when power is off. With five red and five green power levels, all lighting conditions can be quickly matched. A CR2032 battery powers the reticle.
The Ballistic CQ reticle features holdover dots good out to 600 yards. They work best with 5.56 or 7.62 ammunition.
Specifications:
- Magnification: 5x
- Reticles: Ballistic CQ
- Reticle Color(s): Black, Green, Red (300210)
- Clear Objective Lens Diameter: 36 mm
- Finish: Matte
- Field of View: 20 ft. @ 100 yds.
- Mount: Picatinny Rail Base
- Close Focus: 25 ft.
- Eye Relief: 2.5 - 3.5 in.
- Click Value: 1/3 MOA
- Height Above Rail to Optic Centerline: 1.6 in.
- Elevation Adjustment, Total Capability: 70 MOA
- Example: 50 MOA is roughly 25 MOA from center.
- Windage Adjustment: 70 MOA
- Example: 50 MOA is roughly 25 MOA in any direction from center.
- Length: 5.8 in. (without sunshade or flip-up covers)
- Weight: 8.75 oz. (300210)
- 20.25 oz. (300223)
- Illumination Control: Rotary dial
- Illumination Settings: 5 red settings; 5 green settings; off is black
- Battery: CR2032
